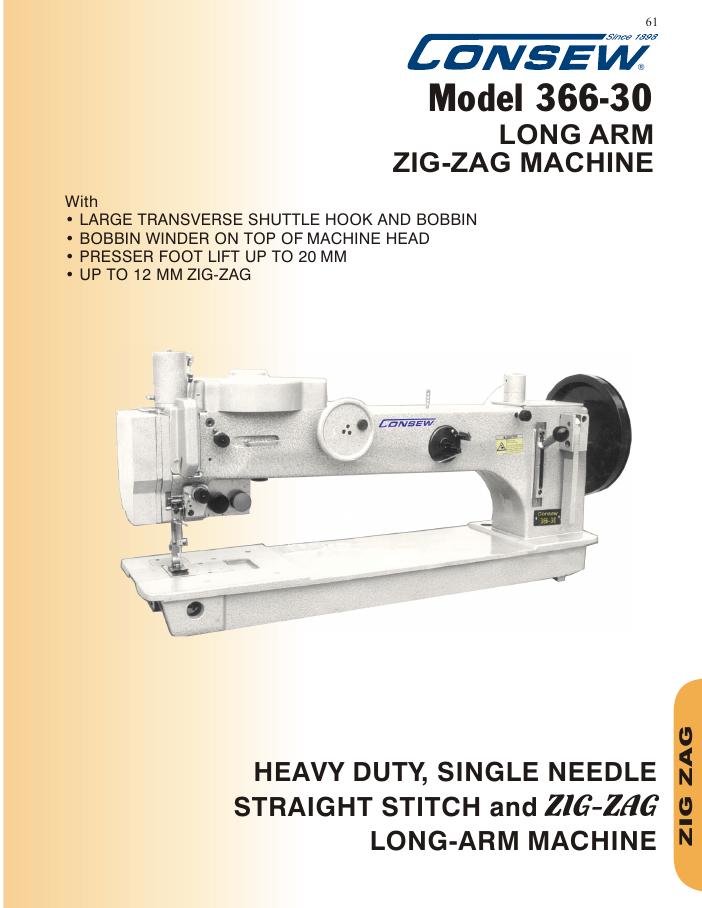

Consew 366-30 Heavy Duty Single Needle Straight Stitch and Zig-Zag 30 inch Long-Arm Industrial Sewing Machine Comes With Table, Legs, and Servo Motor

Large Transverse Shuttle Hook And Bobbin, Bobbin Winder On Top Of Machine Head, Presser Foot Lift Up To 20mm, Up To 12mm Zig-Zag

*Also available in Consew 366-30P Puller Feed version

MACHINE APPLICATIONS:

Great for sewing various kinds of leather, synthetic, vinyl, canvas and working on large pieces.  The zig-zag operation is particularly suited for the production of sails, tents, tarpaulins & leather goods.

MACHINE FEATURES:

• Straight Stitch up to 10mm stitch length
• Zig-Zag: 1-step, 2-step & 3-step operation
• Control cams for 1-step and 3-step zig-zag included
• Fast conversion to different stitches and needle sizes
• Stitch control cams, hook, bobbin and shuttle race can be easily accessed by loosening a knurled nut
• Large transverse shuttle hook and bobbin
• Bobbin winder on top of machine head
• Presser foot lift up to 20 mm
• Large handwheel for increased sew-through capability
• Coordinated foot pressure and foot lift for easy control
• Push-button control for intermittent tacking and ½ stitch needle adjustment
• Permanently lubricated roller bearings for long life
• Needle guard and bar designed for sewing safety when using very thick threads
• Optional top and bottom puller feed available

MACHINE SPECIFICATIONS:

• Number of Needles:  1 (Single)
• Feeding Mechanism: Drop Feed
• Workspace: Long Arm
• Standard or Full Function: Standard Functions
• Stitch Length: 10 mm
• Work Space: 760mm x 175mm
• Needle Bar Stroke: 50.8mm
• Lubrication: Manual
• Sewing Speed: 600 rpn
• Thread Take-Up Stroke: 96mm
• Shuttle Hook: KSP-204N
• Needle Size: DY x 3 25#
• Presser Foot: By Hand 13mm
• Lift Height: By Knee 20mm
• Zig-Zag Stitch Width: 0-12mm
• Motor: 750W Clutch Motor

THE ADVANTAGES OF A SERVO MOTOR:

• Silent and use up to 90% less power than clutch motors
• 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust
• Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
